This chapter describes how to write RMI applications for the Java Card platform. In this release, you can run and debug Java Card remote method invocation (Java Card RMI) applications in the C language Java Card RE and the Java Card platform Workstation Development Environment (Java Card WDE).

---

Developing an RMI Applet for the Java Card Platform

Following are the main steps for developing an RMI applet for the Java Card platform:

1. Define remote interfaces

2. Develop classes implementing the remote interfaces

3. Develop the main class for the applet

For a simple applet, the main class of the applet can also be the class implementing the remote interface.

Generating Stubs

The Java Card RMI Client framework requires stubs only when the remote_ref_with_class format is used for passing remote references. These stubs of remote classes of applets must be pr-generated and available on the client. When the remote_ref_with_interfaces format is used, stubs are not necessary.

In this example, Sun Microsystems' standard RMI Compiler (rmic) is used to generate these stubs.

Following is the command to run the rmic:

rmic -v1.2 -classpath path -d output_dir class_name

where:

path includes the path to the remote class of your sample applet and to the file javacardframework.jar.

output_dir is the directory in which to place the resulting stubs

class_name is the name of the remote class

The -v1.2 flag is required by the RMI client framework for the Java Card platform.

The rmic must be called for each remote class in your applet.

The file javacardframework.jar is provided in version 2.2.2 of the Java Card development kit. This JAR file contains compiled implementations of packages javacard.framework, javacard.framework.service, and javacard.security. Classes in these packages might be referenced by Java Card RMI applets and thus might be needed by the rmic to generate stubs.

Running a Java Card RMI Applet

The server part (the Java Card RMI-enabled applet) can be run on both the C-language Java Card RE and Java Card WDE.

To run the applet on the C-language Java Card RE, the standard procedures apply: the applet must be installed first, using the installer applet. After the applet is installed, the EEPROM state can be saved and used to run the C-language Java Card RE against the Java Card RMI client.

The simplest way to run a Java Card RMI-enabled applet on the Java Card WDE is to add it to the WDE configuration file on the first line. This uses the fact that the Java Card WDE automatically installs the first applet on "power up." The Java Card WDE is a very convenient environment to debug Java Card RMI applets. Of course, all of the standard limitations (such as absence of firewall support) apply.

Running the Java Card RMI Client Program

The client program can be developed and compiled using javac or your favorite IDE. To compile the client, the remote interfaces for your applet must be present in your classpath.

Running the client program has the following requirements.

• The client framework file jcrmiclientframework.jar is present in the classpath. This file contains all the client framework and necessary classes from the card framework.
• The file jccclient.properties is present in one of the directories specified in the classpath.
• The remote interfaces and stubs for your applet are present in the classpath. For a sample command line to run a client program, refer to the file rmidemo or rmidemo.bat in this directory.
• The jccclient.properties file supplied in the samples/src/demo directory. This file specifies parameters for com.sun.javacard.clientlib.APDUIOCardAccessor. To be accessible at runtime, this file must be located in one of the directories listed in the classpath. This parameter connection specified in the file can be configured to be TCP, serial or PC/SC (unsupported). The protocol being used can be T0 or T1.

---

Basic Example

The basic example is the Java Card platform equivalent of "Hello World," which is a program that manages a counter remotely, and is able to decrement, increment, and return the value of the counter.

Main Program

As for any Java Card RMI program, the first step is to define the interface to be used as contract between the server (the Java Card technology-based application) and its clients (the terminal applications):

This is a typical Java Card RMI interface in the following ways:

• The interface type extends the java.rmi.Remote interface. This interface is a tagging interface that identifies the interface as defining a remotely accessible object.
• Every method in the interface must be declared as throwing a RemoteException or one of its superclasses (IOException or Exception). This exception is required to encapsulate all the communication problems that might occur during a remote invocation of the method. In addition, the credit, debit, and getBalance methods also throw the UserException to indicate application-specific errors.
• The interface can also define values for constants that might be used in the communication between the client and the server. The Purse interface defines a constant MAX_AMOUNT that represents the maximum allowed value for the transaction amount parameter. It also defines a reason code REQUEST_FAILED for the UserException qualifier.

Implement a Remote Interface

The next step provides an implementation for this interface. This implementation runs on a Java Card platform, and it therefore needs to use only features that are supported by a Java Card platform:

Here, the remote interface is the Purse interface, which declares the remotely accessible methods. By implementing this interface, the class establishes a contract between itself and the compiler, by which the class promises that it will provide method bodies for all the methods declared in the interface:

public class PurseImpl extends CardRemoteObject implements Purse

The class also extends the javacard.framework.service.CardRemoteObject class. This class provides our class with basic support for remote objects, and in particular the ability to export or unexport an object.

Define the Constructor for the Remote Object

The constructor for a remote class provides the same functionality as the constructor of a non-remote class: it initializes the variables of each newly created instance of the class.

In addition, the remote object instance will need to be exported. Exporting a remote object makes it available to accept incoming remote method requests. By extending CardRemoteObject, a class guarantees that its instances are exported automatically upon creation on the card.

If a remote object does not extend CardRemoteObject (directly or indirectly), you must explicitly export the remote object by calling the CardRemoteObject.export method in the constructor of your class (or in any appropriate initialization method). Of course, this class must still implement a remote interface.

To review:

The implementation class for a remote object needs to do the following:

• Implement a remote interface
• Export the object so that it can accept incoming remote method calls

Provide an Implementation for Each Remote Method

The implementation class for a remote object contains the code that implements each of the remote methods specified in the remote interface. For example, here is the implementation of the method that debits the purse:

An operation is only allowed if the value of its parameter is compatible with the current state of the purse object. In this particular case, the application only checks that the amounts handled are positive and that the balance of the purse always remains positive.

In Java Card RMI, the arguments to and return values from remote methods are restricted. The main reason for this limitation is that the Java Card platform does not support object serialization. Following are the rules for the Java Card platform:

• The arguments to remote methods can be of any supported integral type (such as boolean, byte, short and int), or any single-dimensional arrays of these integral types.

• The return value from a remote method can be any type supported as arguments, as well as any remote interface type. The method can also return void.

On the other hand, object passing in Java Card RMI follows the normal RMI rules:

• By default, non-remote objects are passed by copy, which means that all data members of an object are copied, except those marked static or transient. In the case of the Java Card platform, this rule is trivial to apply, because the only objects concerned are arrays of integral types.
• Remote objects are passed by reference. In the case of the Java Card platform, remote objects can only be passed as return values. A reference to a remote object is actually a reference to a stub, which is a client-side proxy for the remote objects. Stubs are needed only when the format remote_ref_with_class is used for passing remote references. When another format, such as remote_ref_with_interfaces, is used, stubs are not necessary. Stubs are described in Generate the Stubs.

A class can define methods not specified in a remote interface, but they can only be invoked on-card within the Java Card VM and cannot be invoked remotely.

Building an Applet

In version 2.2.2 of the Java Card platform (as in version 2.1), all applications must include a class that inherits from javacard.framework.Applet, which will provide an interface with the outside world. This also applies to applications that are based on remote objects, for two main reasons:

• The remote objects must be instantiated and initialized, which can be done in an applet's install method.
• The remote objects must communicate with the outside world, which can be done in an applet's process method.

For conversion, an applet should be assigned with an AID known on the client side, 0x00;0x01:0x02:0x03:0x04:0x05:0x06:0x07:0x08, since this AID is used in the client program.

Following is the basic code for such an applet:

Preparing and Registering the Remote Object

The PurseApplet constructor contains the initialization code for the remote object. First, a javacard.framework.service.RMIService object must be allocated. This service is an object that knows how to handle all the incoming APDU commands related to the Java Card RMI protocol. The service must be initialized to allow remote methods on an instance of the PurseImpl class. A new instance of PurseImpl is created, and is specified as the initial reference parameter to the RMIService constructor as shown in the following code snippet. The initial reference is the reference that is made public by an applet to all its clients. It is used as a bootstrap for a client session, and is similar to that registered by a Java RMI server to the Java Card RMI registry.

RemoteService rmi = new RMIService( new PurseImpl() ) ;

Then, a dispatcher is created and initialized. A dispatcher is the glue among several services. In this example, the initialization is quite simple, because there is a single service to initialize:

dispatcher = new Dispatcher((short)1) ;

dispatcher.addService(rmi, Dispatcher.PROCESS_COMMAND) ;

Finally, the applet must register itself to the Java Card RE to be made selectable. This is done in the install method, where the applet constructor is invoked and immediately registered:

(new PurseApplet()).register() ;

Processing the Incoming Commands

The processing of the incoming commands is entirely delegated to the Java Card RMI service, which knows how to handle all the incoming requests. The service also implements a default behavior for the handling of any request that it does not recognize. In Java Card RMI, the following kinds of requests that can be handled:

• Selection request, to which the service responds by sending its initial remote reference
• Method invocation request, to which the service responds by performing the actual method invocation and returning the result

To perform these actions, the service needs privileged access to some resources that are owned by the Java Card RE (in particular, privileged access is needed to perform the method invocation). The applet delegates processing to the Java Card RMI service from its process method as follows:

dispatcher.process(apdu) ;

Writing a Client

The client application runs on a terminal supporting a Java Virtual Machine^[1] environment such as Java 2 Platform, Standard Edition (J2SE platform) or Java 2 Platform, Micro Edition (J2ME platform).

The PurseClient application interacts with the remote stub classes generated by a stub generation tool and the Java Card platform-specific information managed by the Java Card platform client-side framework located in packages com.sun.javacard.clientlib and com.sun.javacard.rmiclientlib.

The following example uses standard Java RMIC compiler-generated client-side stubs. The client application as well as the Java Card client-side framework rely on the APDU I/O library for managing and communicating with the card reader and the card on which the Java Card applet PurseApplet resides. This makes the client application very portable on J2SE platforms.

The following example shows a very simple PurseClient application that is the client application of the Java Card technology-based program PurseApplet:

Initializing and Shutting Down the Card Connection

The client application must open the connection to the card and close it at the end.

The following code shows opening and closing the connection using the RMI client framework:

Creating and Using a CardAccessor Object

To access the Java Card applet using remote methods, the client application must obtain an instance of the CardAccessor interface. The ApduIO class implements the CardAccessor interface and is included in the framework.

The CardAccessor interface is a platform-independent and framework-independent interface that is used by the RMI framework for the Java Card platform to communicate with the card. The CardAccessor object is then provided as a parameter during construction of the JavaCardRMIConnect class to initiate an RMI dialogue for the Java Card platform as the following code shows:

// create an RMI connection object for the Java Card platform

JavaCardRMIConnect jcRMI = new JavaCardRMIConnect( myCS ) ;

Selecting the Java Card Applet and Obtaining the Initial Reference

To invoke methods on the remote objects of the Java Card applet PurseApplet on the card, it must first be selected using the AID:

Then, the client must obtain the initial reference remote object for PurseApplet. JavaCardRMIConnect returns an instance of a stub class corresponding to the PurseImpl class on the card which implements the Purse interface. The client application knows beforehand that the PurseApplet's initial remote reference implements the Purse interface and therefore casts it appropriately:

// obtain the initial reference to the Purse interface

Purse myPurse = (Purse) jcRMI.getInitialReference() ;

Using Remote Objects in Remote Method Invocations

The client can now invoke remote methods on the initial reference object. The remote methods are declared in the Purse interface. The following code shows the client invoking the debit method. Note how an UserException exception thrown by the remote method is caught by the client code in a normal Java programming language style.

Generate the Stubs

The client-side scenario uses RMIC generated stubs for the remote classes. RMIC is the Java RMI stub compiler. For the client application PurseClient to execute correctly on the terminal, it needs these remote stub classes and the remote interface class files it uses to be accessible in its classpath.

The stub class PurseImpl_Stub.class for the PurseImpl class is produced by running the standard JDK1.5 RMIC compiler. For example, when in the examples/purse directory, enter the following commands:

Solaris and Linux platforms:

rmic -classpath ../..;$JC_HOME/lib/javacardframework.jar -d ../.. -v1.2 examples.purse.PurseImpl

Microsoft Windows platform:

rmic -classpath ../..;%JC_HOME%/lib/javacardframework.jar -d ../.. -v1.2 examples.purse.PurseImpl

This produces a stub class called examples.purse.PurseImpl_Stub.

Thus, for PurseClient to run correctly on the terminal, the following files must be present in the examples/purse directory and accessible via its classpath or from class loaders:

• PurseImpl_Stub.class
• Purse.class

Card Terminal Interaction

When a Java Card technology-enabled smart card is powered up, the card sends an ATR (Answer to Reset) to the terminal. The Card Accessor returns the value of the ATR to the client program.

FIGURE 4-1 Smart Card Sends an ATR to the Terminal

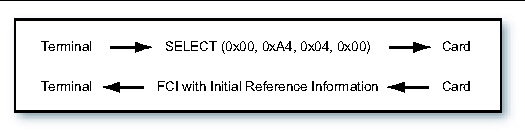

When the PurseClient application calls the selectApplet method of JavaCardRMIConnect, it sends a SELECT APDU command to the card via the CardAccessor object. This results in a File Control Information (FCI) APDU response from the RMIService instance of PurseApplet on the card in a TLV (Tag Length Value) format that includes the initial reference remote object information, which FIGURE 4-2 illustrates.

FIGURE 4-2 Terminal Sends a SELECT Command to the Smart Card, which Returns FCI

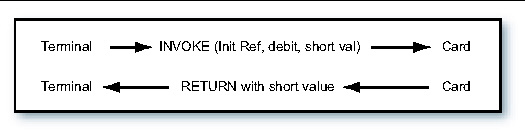

Later, when the PurseClient application calls the debit method of the remote interface Purse, the PurseImpl_Stub object sends an invoke command to the card via the CardAccessor object, identifying the remote object reference, interface, method, and parameter data for method invocation. The RMIService instance of PurseApplet unmarshalls this information and invokes the debit method of the PurseImpl instance, and returns the return value in the response APDU, which FIGURE 4-3 illustrates.

FIGURE 4-3 Terminal Sends an INVOKE Command to the Smart Card, Which Returns a Value

---

Adding Security

This first example is extremely simple and is not realistic. In particular, it does not include any kind of security. Users are not authenticated and no transport security is provided. Of course, every smart card that implements the Java Card platform includes such security mechanisms, because they are central to Java Card technology.

The following section describes how to add security support to the Purse example.

The Purse interface in the package examples.securepurse is similar to the Purse interface in the previous code sample. In addition, it might include reason codes for exceptions to report security violations to the terminal. Replace it with examples.securepurse. The interface does not include any implementation, which means that, in particular, it does not include any support for security.

The applet keeps its original organization but it also includes additional code that is dedicated to the management of security.

Initialize a Security Service

In this example, basic security services (principal identification and authentication, secure communication channel) are provided by an object that implements the SecurityService interface. Because a generic remote object must not be dependent on a particular kind of security service, it must take a reference to this object as a parameter to its constructor. This is exactly what happens here, where the reference to the object is stored in a dedicated private field:

private SecurityService security ;

The SecurityService interface is part of the extended application development framework and offers an API that can then be used to check on the current security status.

Use the Service to Check the Current Security Status

In the example, this following required security behaviors for the applet are assumed:

• The debit method is authorized only if it is sent through a secure channel that ensures at least the integrity of input data, and if the cardholder is successfully authenticated.
• The credit method is authorized only if it is sent through a secure channel that ensures at least the integrity of input data, and if the application issuer is successfully authenticated.
• The getBalance method is authorized only if the cardholder or the application issuer is successfully authenticated.

The SecurityService provides methods and constants that allow the implementation to perform such checks. For instance, following is the code for the checks on the debit method:

If one of the two conditions is not satisfied, the remote object throws an exception. This exception is caught by the dispatcher and forwarded to the client.

Implementing a Security Service

The following example shows how to implement a security service.

Building an Applet

The supporting applet also must undergo some significant changes, in particular regarding the initialization of the remote object:

The security service that is used by the remote object must be initialized at some point. Here, this is done in the constructor for the SecurePurseApplet:

sec = new MySecurityService() ;

The initialization then goes on with the initialization of the Java Card RMI service. The only new thing here is that the remote object being allocated and set as the initial reference is now a SecurePurseImpl:

RemoteService rmi = new RMIService( new SecurePurseImpl(sec) );

Next, the dispatcher must be initialized. Here, it must dispatch simple Java Card RMI requests and security-related requests (such as EXTERNAL AUTHENTICATE). In fact, the security service handles these requests directly. First, allocate a dispatcher and inform it that it will delegate commands to two different services:

dispatcher = new Dispatcher((short)2);

Then, register services with the dispatcher. The security service is registered as a service that performs preprocessing operations on incoming commands, and the Java Card RMI service is registered as a service that processes the command requested:

dispatcher.addService(rmi, Dispatcher.PROCESS_COMMAND) ;

dispatcher.addService(sec, Dispatcher.PROCESS_INPUT_DATA) ;

The rest of the class (install and process methods) remain unchanged.

Writing a Client

The driver client application itself only changes minimally to account for the authentication and integrity needs of SecurePurseApplet. It must also interact with the user for identification. Hence, a subclass of ApduIO_Card_Accessor must be developed to provide these additional interactions and the transport filtering required.

Following is the new SecurePurseClient application:

Note that the CustomCardAccessor instance is now obtained instead of ApduIOCardAccessor:

cca = new CustomCardAccessor(new ApduIOCardAccessor());

An extra step to authenticate with the SecurePurseApplet after selectApplet is added. This invokes a new method in CustomCardAccessor to interact with the card using the user's credentials:

The rest of SecurePurseClient is the same as PurseClient.

Writing a CustomCardAccessor Class

The SecurePurseClient application uses a subclass of CardAccessor called CustomCardAccessor to perform user authentication functions and to sign every message sent thereafter for integrity purposes:

The CustomCardAccessor class introduces the authenticateUser method to send APDU commands to the SecurePurseApplet on the card to authenticate the user described by the userKey parameter and other parameters and to compute a transport key. It invokes super.sendCommandAPDU method to send the command without modification.

This CustomCardAccessor class also reimplements the exchangeAPDU method declared in a superclass CardAccessor to sign each message before it is sent out by super.exchangeAPDU.

^{1 (Footnote) The terms "Java Virtual Machine" and "JVM" mean a Virtual Machine for the Java platform.}
